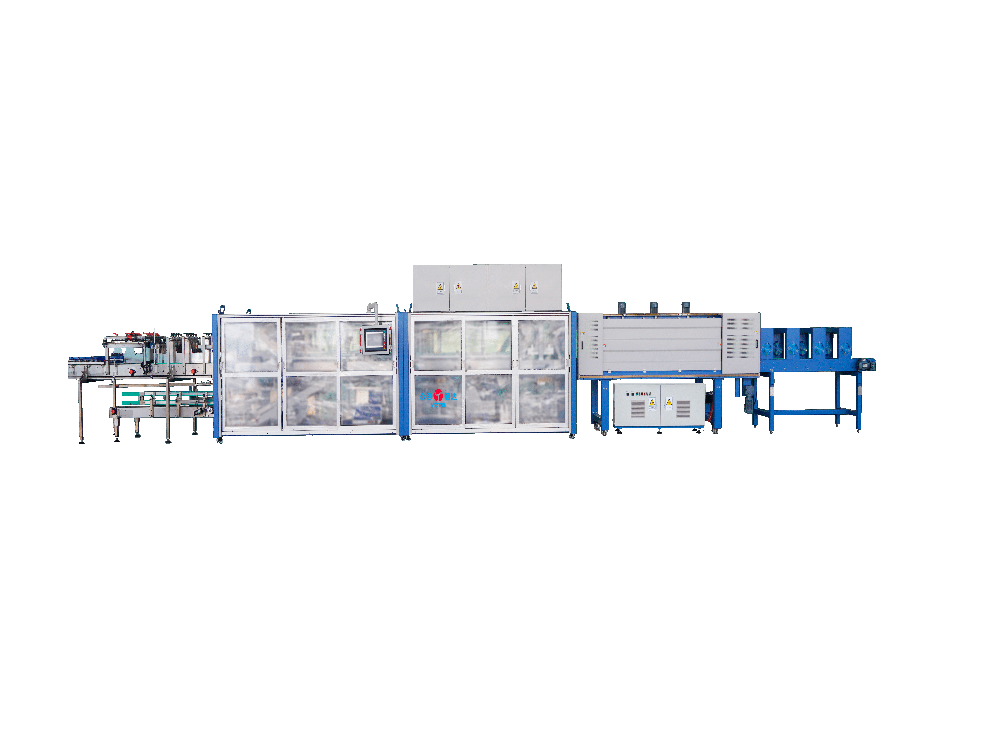

YCBS60ZT Heat Shrink Wrapper

No.YCBS60ZT

YCBS60ZT Heat Shrink Wrapper
It realizes automatic grouping and bundling to save time and improve working efficiency.
Adopting new flexible design and manufacturing technologies, it can meet higher-level application requirements.
It is compatible with paper tray plus film packaging for bottles of different diameters and various grouping layouts.
Optional color film packaging system and cardboard plus film packaging solution are available.
Equipped with our self-developed circulating air system,

GET A QUOTE

Description

YCBS60ZT Shrink Wrapper
Model: YCBS60ZT
Packaging Speed: 60 trays/min
Overall Dimensions: L 21465 × W 1800 × H 2700 mm
Conveyor Width: 686 mm
Shrink Tunnel Dimensions: L 3000 × W 700 × H 450 mm
Air Consumption: 300 NL/min
Max. Pack Dimensions: Width 180–300 mm, Length 240–420 mm
Working Air Pressure: 0.6–0.8 MPa
Power Supply & Total Power: 3-phase 5-wire, 380V, 95 kW
Total Weight: 6000 kg
