It is suitable for paper tray combined with film packaging for bottles of different diameters and various grouping layouts.
Optional color film packaging system and cardboard plus film packaging solution can be added.
Equipped with a color LCD screen, it features a user-friendly interface for quick parameter setting, facilitating easy human-machine interaction and operation.
Adopting our self-developed circulating air technology, the machine boasts a well-designed structure, good heat insulation

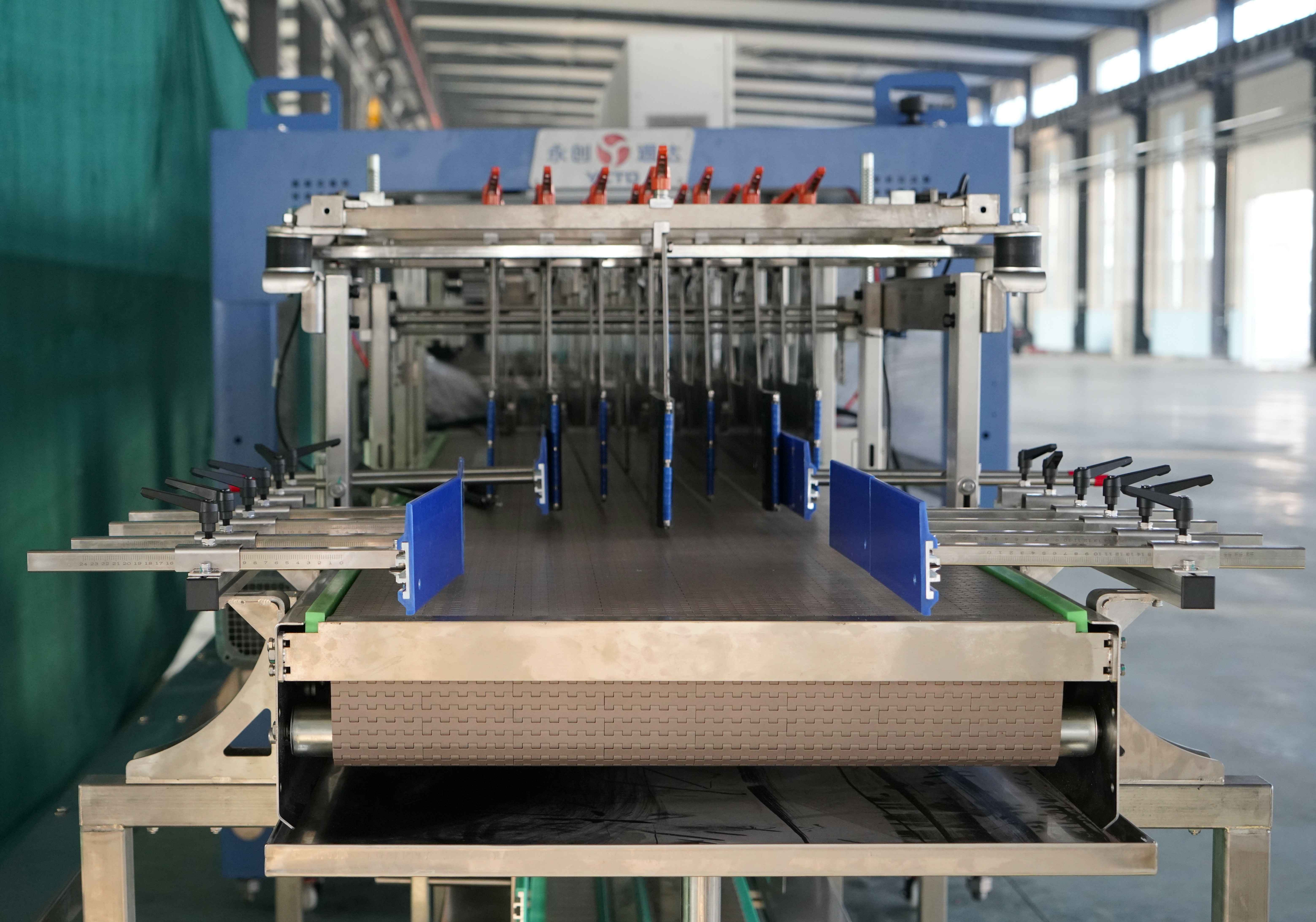

YCBS45 Shrink Wrapper Model: YCBS45 Packaging Speed: 45 packs/min Overall Dimensions: L 17685 × W 1800 × H 2500 mm Conveyor Width: 541 mm Shrink Tunnel Dimensions: L 2500 × W 700 × H 450 mm Air Consumption: 80–100 NL/min Max. Pack Size: L 460 × W 280 × H 340 mm Working Air Pressure: 0.6–0.8 MPa Power Supply & Total Power: 3-phase 5-wire, 380V, 86 kW Total Weight: 8100 kg
