The infeed adopts gate-type grouping structure for fast grouping and packaging.
It is equipped with exclusive trapezoidal guardrails for physical pressure relief, and can be further fitted with bottle turning assemblies.
With pneumatic expanding film roll holders and sensor-based film conveying, the machine ensures steady film feeding and quick film replacement.
Adopting a premium three-servo motion control system, it features adjustable operating parameters, high prec

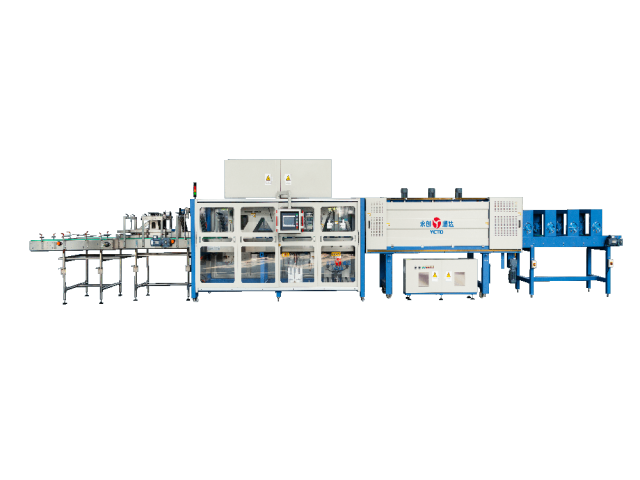

YCBS40 Shrink Wrapper Model: YCBS40 Packaging Speed: 40 packs/min Overall Dimensions: L 16390 × W 1800 × H 2500 mm Conveyor Width: 686 mm Shrink Tunnel Dimensions: L 2500 × W 700 × H 450 mm Air Consumption: 80–100 NL/min Max. Pack Size: L 460 × W 280 × H 345 mm Working Air Pressure: 0.6–0.8 MPa Power Supply & Total Power: 3-phase 5-wire, 380V, 85 kW Total Weight: 7200 kg
