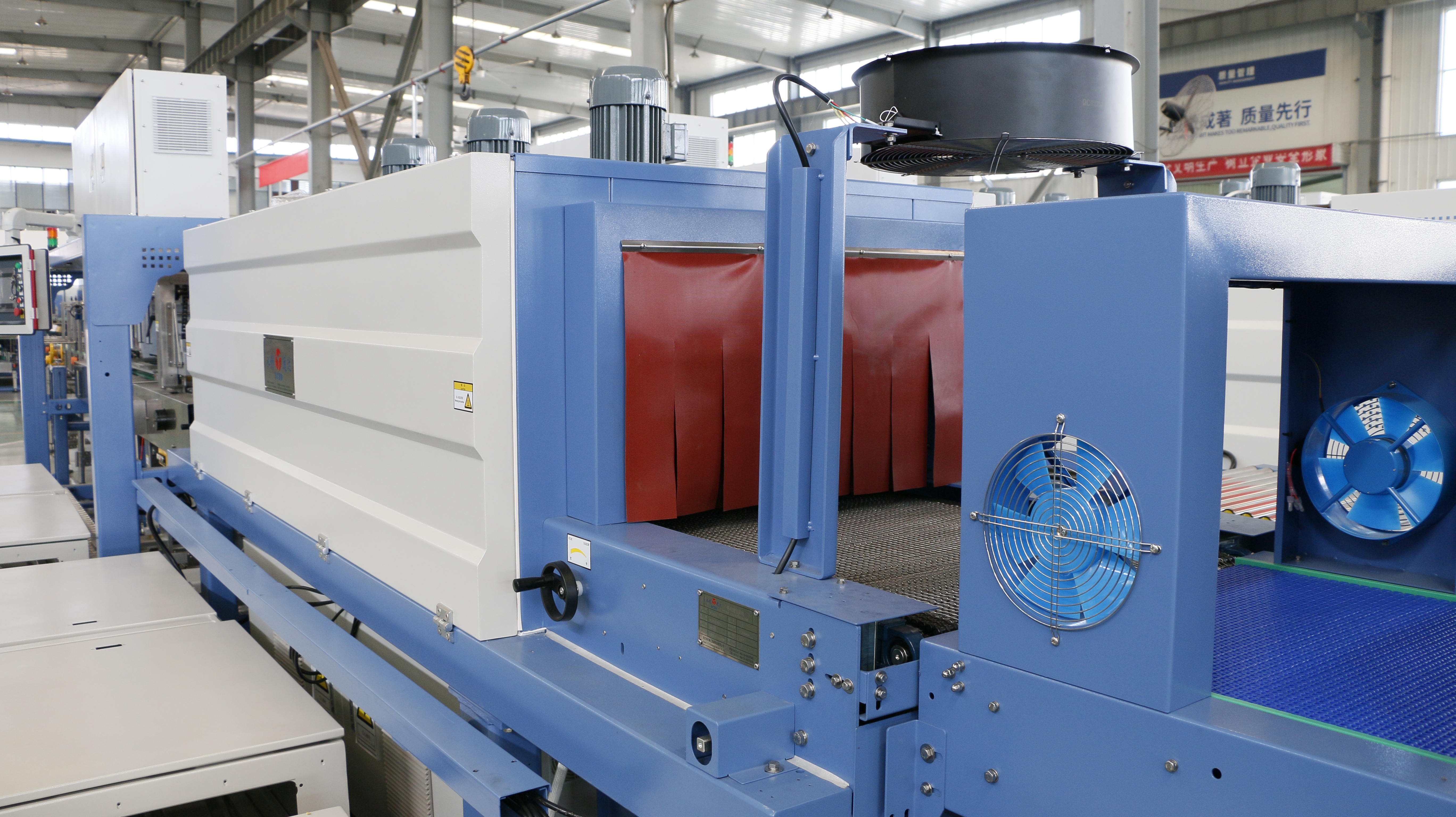

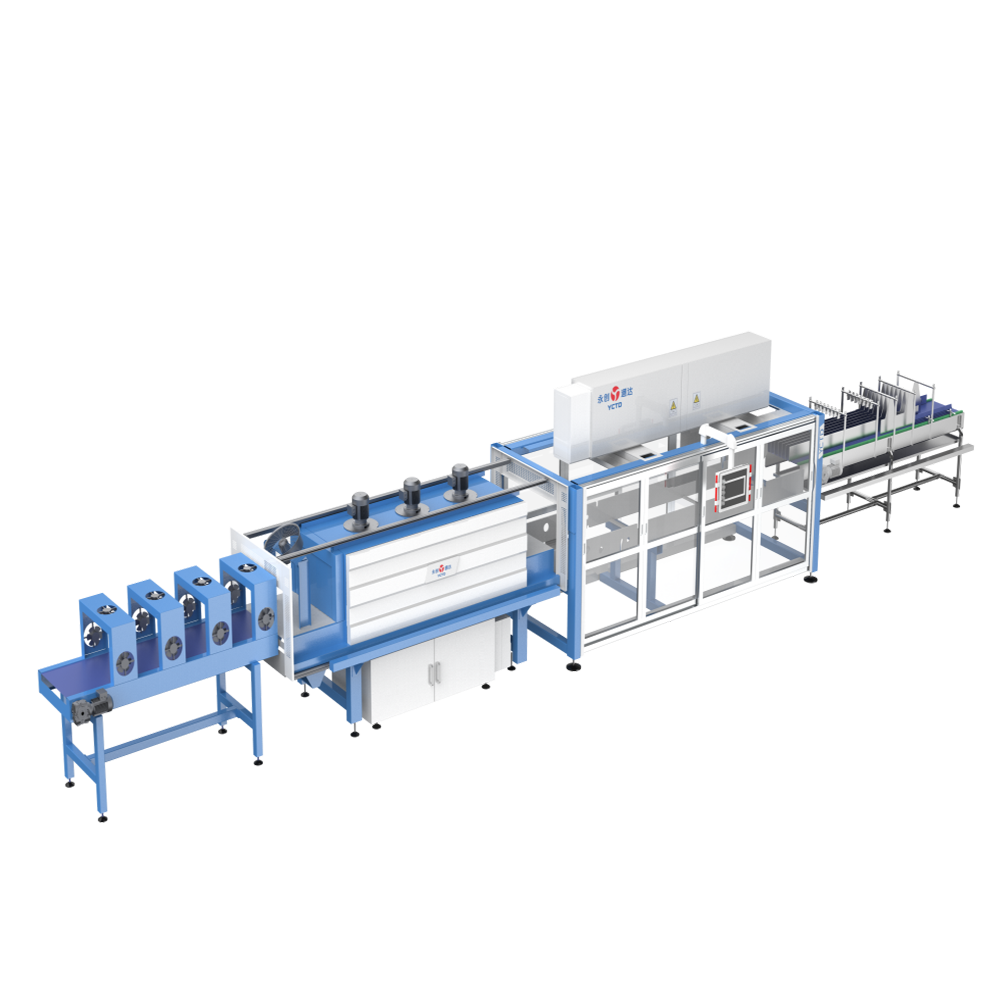

YCBS30 Heat Shrink Wrapper
It adopts gate-type grouping for bottle infeed, delivering high speed for grouping and packaging.
The exclusive trapezoidal guardrails realize physical pressure relief, and a bottle turning mechanism can be optionally installed.
Equipped with pneumatic expanding film roll supports and electronically sensed film conveying system, it ensures stable film feeding and rapid film replacement.
Fitted with a high-performance three-servo motion control system, the machine featu
YCBS30 Shrink WrapperModel: YCBS30 Packaging Speed: 30 packs/min Overall Dimensions: L 16390 × W 1800 × H 2500 mm Conveyor Width: 686 mm Shrink Tunnel Dimensions: L 2500 × W 700 × H 450 mm Air Consumption: 350 NL/min Max. Pack Size: L 460 × W 280 × H 345 mm Working Air Pressure: 0.6–0.8 MPa Power Supply & Total Power: 3-phase 5-wire, 380V, 68 kW Total Weight: 6200 kg
