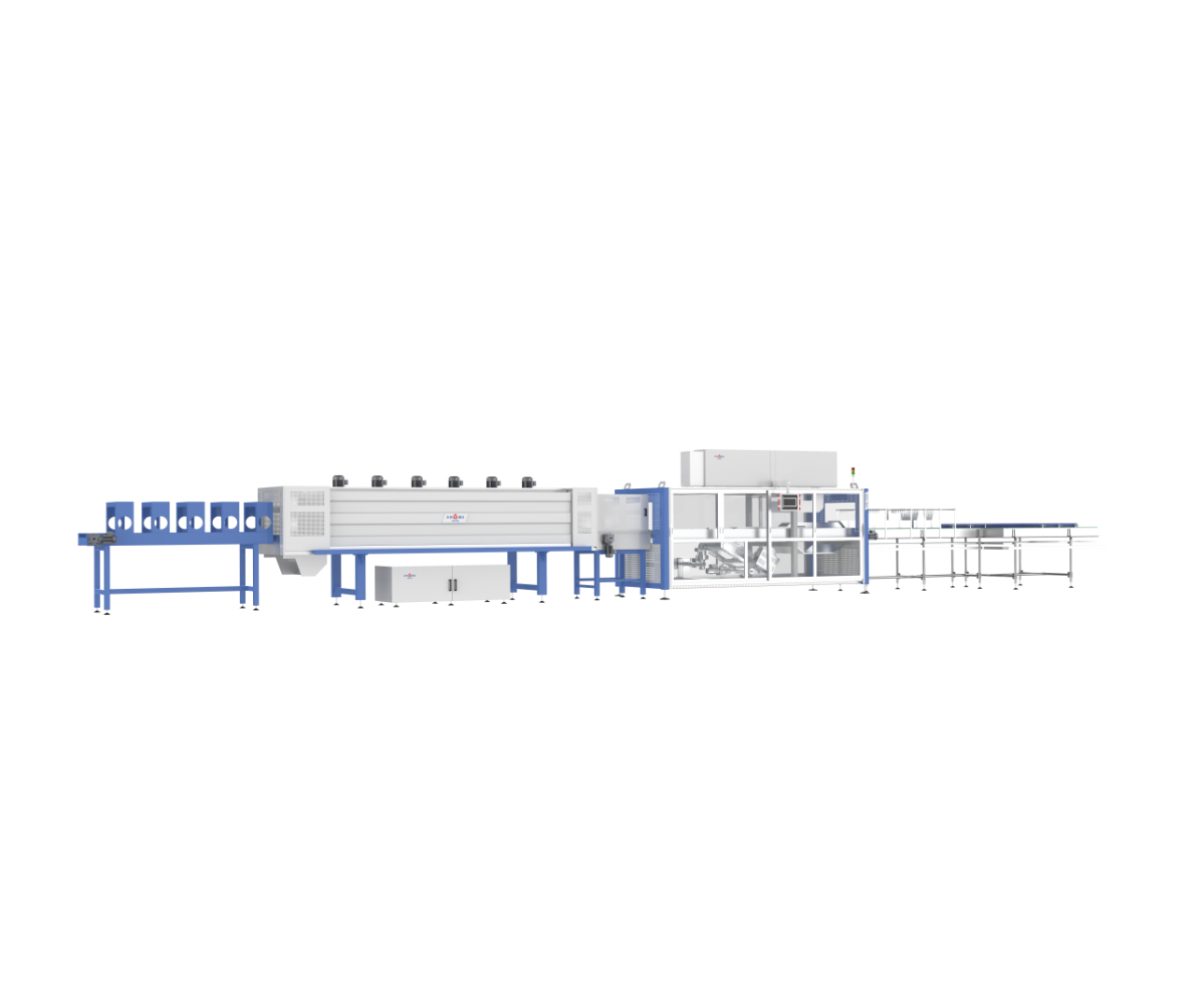

YCBS150C Heat Shrink Wrapper

No.YCBS150C
YCBS150C Heat Shrink Wrapper
Equipped with film unwinding unit and constant-tension film conveying system, the machine features instant film cutting and automatic overlapping wrapping, delivering enhanced package strength after shrinking.
Adopts vibration-based bottle separating design to avoid jamming and squeezing, ensuring smooth product conveying.
Driven by servo control system, the bottle pusher, film feeding, cutting and wrapping actions run synchronously for stable and reliable operation.
  • YCBS150C Heat Shrink Wrapper,Hanmei Machinery,YCBS150C Heat Shrink Wrapper

Description

YCBS150C Shrink Wrapper

Model: YCBS150C
Packaging Speed: 150 packs/min
Overall Dimensions: L 19600 × W 1530 × H 2500 mm
Conveyor Width: 680 mm
Shrink Tunnel Dimensions: L 3000 × W 1000 × H 650 mm
Air Consumption: 80–100 NL/min
Max. Pack Size: L 460 × W 280 × H 350 mm
Working Air Pressure: 0.6–0.8 MPa
Power Supply & Total Power: 3-phase 5-wire, 380V, 108 kW
Total Weight: 5500 kg
